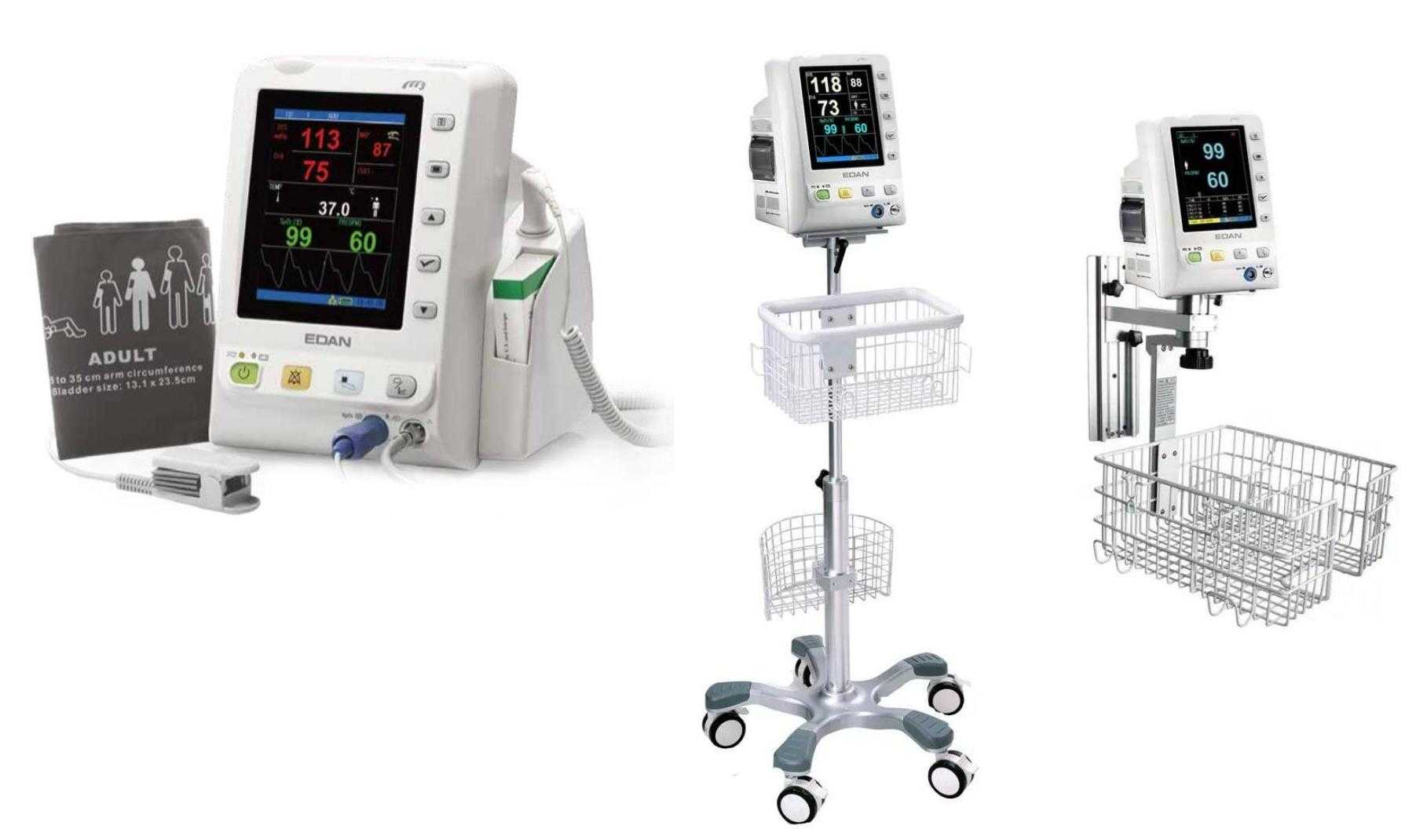

5.6 inch Vital Sign Monitor - (#M3)

1. Parameter

Standard parameter：NIBP,SpO2,PR

Optional parameter：Nellcor SpO2、F3000 quick TEMP、TH type infrared ear thermometer

2. Display

5.6 inch screen display

Support display multiple groups of measurement trend data on the same screen

3. Data storage and review

1). Storage and review of 72-hour trend graphs/tables

2). Review of 30,000 sets of NIBP measurements

3). Equipped with 800 alarm events

4). Equipped with USB data interface, optional U disk for monitoring data storage capacity expansion

4. Feature

1). Small and lightweight, easy to carry, weight ≤ 3.5kg

2). AC and DC dual-use, built-in removable lithium battery, uninterrupted monitoring, the longest battery working time is more than 7 hours.

3). It has a standby function to temporarily stop all monitoring operations and save power. When exiting this state, monitoring can be resumed immediately, which is energy-saving and environmentally friendly

4). It has pulse-modulated sound, which can determine changes in blood oxygen saturation by the tone change of heartbeat sound, enabling medical staff to obtain patient vital signs from hearing

5). Support nurse call function, and can directly transmit patient information alarm to the nurse station

6). Comprehensive applicability for adults, children, and newborns

7). Optional Nellcor SpO2 module

8). Optional three-channel built-in thermal printer

9). Three-level sound and light alarm function, with adjustable alarm upper and lower limits

5. Power supply:

Power supply: 100V-240V, 50HZ-60HZ

Battery: Built-in detachable rechargeable lithium battery, maximum use time ≥7 hours (2500mAh) ,

maximum use time ≥14 hours (optional 5000mAh)
